型号意義
産品簡介

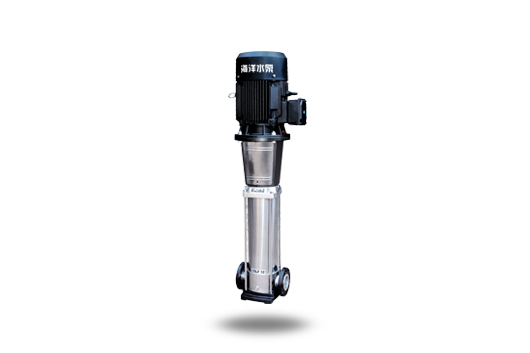

CDL,CDLF立式不鏽鋼輕型多級清水泵(以下簡稱泵)，具有高效率、低噪聲、耐輕度腐蝕及結構緊湊、外形美觀、體積小、重量輕、使用維護方便、密封性能可靠等特點。
産品特點
CDLF立式不鏽鋼輕型多級清水泵其水力模型設計先進，高效率，高節能。水泵内部葉輪、泵殼及其主要配件采用不鏽鋼沖壓成形，流道特别光滑，軸瓦、軸套用硬質合金，具有超強的使用壽命，避免産生二次污染。軸封采用耐磨機械密封，無洩漏。電機采用Y2鉛外殼，進口軸承，絕緣等級F級。泵運轉平穩，低噪音，整機質量可靠，外形美觀、體積小、重量輕、運輸方便，是理想的綠色、環保、節能的水泵。
CDLF立式不鏽鋼輕型多級清水泵爲安裝标準電機的非自吸立式多級離心泵，電機軸通過泵頭用聯軸器直接與泵軸聯接，拉杆螺栓將耐壓筒、過流部件固定在泵頭和進出水段之間，泵進出水口在泵底同一直線上；CDLF立式不鏽鋼輕型多級清水泵是一種多功能産品，可以輸送從自來水到工業液體的各種不同介質，适應于不同溫度、流量和壓力範圍，CDLF立式不鏽鋼輕型多級清水泵适用于輕度腐蝕性液體。本泵可根據需要配置智能保護器，對泵幹轉、缺相、過載等進行有效保護。
産品用途
●泵送介質：低粘度、中性、非易燃易爆、不含固體顆粒或纖維的液體，且液體不能對泵的材料産生化學腐蝕。
●鍋爐給水及冷凝液系統；
●食品、飲料行業；
●農業、苗圃、高爾夫球場灌溉；
●工業清洗系統；
●空調與制冷系統。
●水處理、滲透及過慮系統；
●高層建築給排水；
●消防系統；
●工業、商業液體的輸送、提升、循環；
适用範圍
●介質溫度：普通型泵-15℃至70℃，熱水型泵70℃至120℃；
●流量範圍：1~110m3/h；
●介質PH值：3至9；
●海拔：1000m
●工作壓力：30bar；
●環境溫度：40℃；
●小進口力：參照NPSH曲線；
 |
當泵輸送的液體的比重和粘度比水大時，軸功率會上升，所以必須使用與軸功率相匹配的電機。 |
性參範圍
|
性能參數及尺寸(25CDLF2-*)
|
|||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
|||||||||||||||
|
m3/h
|
1.0
|
1.2
|
1.6
|
2.0
|
2.4
|
2.8
|
3.2
|
||||||||||||
|
KW
|
L/S
|
0.28
|
0.33
|
0.44
|
0.56
|
0.67
|
0.78
|
0.89
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
(kg)
|
|||||
|
CDLF2-20
|
0.37
|
H (m)
|
18
|
17
|
16
|
15
|
14
|
12
|
10
|
261
|
210
|
471
|
148
|
117
|
20
|
||||
|
CDLF2-30
|
0.37
|
H (m)
|
27
|
26
|
24
|
22
|
20
|
18
|
15
|
279
|
210
|
489
|
148
|
117
|
21
|
||||
|
CDLF2-40
|
0.55
|
H (m)
|
36
|
35
|
33
|
30
|
26
|
24
|
17
|
297
|
210
|
507
|
148
|
117
|
22
|
||||
|
CDLF2-50
|
0.55
|
H (m)
|
45
|
43
|
40
|
37
|
33
|
30
|
24
|
315
|
210
|
525
|
148
|
117
|
23
|
||||
|
CDLF2-60
|
0.75
|
H (m)
|
53
|
52
|
50
|
45
|
40
|
36
|
30
|
343
|
245
|
588
|
170
|
142
|
26
|
||||
|
CDLF2-70
|
0.75
|
H (m)
|
63
|
61
|
57
|
52
|
47
|
41
|
35
|
361
|
245
|
606
|
170
|
142
|
27
|
||||
|
CDLF2-80
|
1.1
|
H (m)
|
71
|
69
|
65
|
59
|
54
|
47
|
40
|
379
|
245
|
624
|
170
|
142
|
28
|
||||
|
CDLF2-90
|
1.1
|
H (m)
|
80
|
78
|
73
|
67
|
61
|
54
|
45
|
397
|
245
|
642
|
170
|
142
|
29
|
||||
|
CDLF2-100
|
1.1
|
H (m)
|
89
|
86
|
81
|
74
|
67
|
59
|
49
|
415
|
245
|
660
|
170
|
142
|
30
|
||||
|
CDLF2-110
|
1.1
|
H (m)
|
98
|
95
|
89
|
82
|
73
|
64
|
54
|
433
|
245
|
678
|
170
|
142
|
31
|
||||
|
CDLF2-120
|
1.5
|
H (m)
|
107
|
103
|
97
|
90
|
81
|
71
|
59
|
461
|
290
|
751
|
190
|
155
|
33
|
||||
|
CDLF2-130
|
1.5
|
H (m)
|
116
|
114
|
106
|
98
|
89
|
78
|
65
|
479
|
290
|
769
|
190
|
155
|
34
|
||||
|
CDLF2-140
|
1.5
|
H (m)
|
125
|
122
|
114
|
105
|
94
|
84
|
69
|
497
|
290
|
787
|
190
|
155
|
35
|
||||
|
CDLF2-150
|
1.5
|
H (m)
|
134
|
130
|
123
|
112
|
100
|
90
|
73
|
515
|
290
|
805
|
190
|
155
|
36
|
||||
|
CDLF2-160
|
1.5
|
H (m)
|
143
|
139
|
131
|
120
|
107
|
96
|
80
|
533
|
290
|
823
|
190
|
155
|
37
|
||||
|
CDLF2-170
|
1.5
|
H (m)
|
152
|
148
|
139
|
128
|
114
|
102
|
86
|
551
|
290
|
841
|
190
|
155
|
38
|
||||
|
CDLF2-180
|
2.2
|
H (m)
|
161
|
157
|
148
|
136
|
121
|
108
|
91
|
569
|
290
|
859
|
190
|
155
|
39
|
||||
|
CDLF2-190
|
2.2
|
H (m)
|
170
|
165
|
156
|
143
|
127
|
113
|
95
|
587
|
290
|
877
|
190
|
155
|
40
|
||||
|
CDLF2-200
|
2.2
|
H (m)
|
179
|
174
|
164
|
150
|
134
|
119
|
100
|
605
|
290
|
895
|
190
|
155
|
41
|
||||
|
CDLF2-210
|
2.2
|
H (m)
|
188
|
183
|
172
|
157
|
141
|
124
|
105
|
623
|
290
|
913
|
190
|
155
|
42
|
||||
|
CDLF2-220
|
2.2
|
H (m)
|
197
|
192
|
180
|
165
|
148
|
130
|
110
|
641
|
290
|
931
|
190
|
155
|
43
|
||||
|
CDLF2-230
|
3.0
|
H (m)
|
205
|
201
|
188
|
173
|
155
|
137
|
115
|
669
|
315
|
984
|
197
|
165
|
45
|
||||
|
CDLF2-240
|
3.0
|
H (m)
|
214
|
210
|
197
|
181
|
163
|
144
|
120
|
687
|
315
|
1002
|
197
|
165
|
48
|
||||
|
CDLF2-250
|
3.0
|
H (m)
|
225
|
219
|
205
|
189
|
170
|
151
|
127
|
705
|
315
|
1020
|
197
|
165
|
50
|
||||
|
CDLF2-260
|
3.0
|
H (m)
|
234
|
228
|
214
|
198
|
178
|
158
|
132
|
723
|
315
|
1038
|
197
|
165
|
52
|
||||
性能參數及尺寸(32CDLF4-*)
|
||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
||||||||||||||
|
m3/h
|
2.0
|
3.0
|
4.0
|
5.0
|
6.0
|
7.0
|
||||||||||||
|
KW
|
L/S
|
0.56
|
0.83
|
1.11
|
1.39
|
1.67
|
1.94
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
(kg)
|
|||||
|
CDLF4-20
|
0.37
|
H(m)
|
18
|
17
|
15
|
13
|
10
|
8
|
297
|
210
|
489
|
148
|
117
|
20
|
||||
|
CDLF4-30
|
0.55
|
H(m) |
27
|
26
|
24
|
20
|
18
|
14
|
306
|
210 |
516
|
148 |
117 |
21
|
||||
|
CDLF4-40
|
0.75
|
H(m) |
36
|
34
|
32
|
27
|
24
|
18
|
343
|
245
|
588
|
170
|
142
|
23
|
||||
|
CDLF4-50
|
1.1
|
H(m) |
45
|
43
|
40
|
34
|
31
|
23
|
370
|
245 |
615
|
170 |
142 |
24
|
||||
|
CDLF4-60
|
1.1
|
H(m) |
54
|
52
|
48
|
41
|
37
|
28
|
397
|
245 |
642
|
170 |
142 |
26
|
||||
|
CDLF4-70
|
1.5
|
H(m) |
63
|
61
|
56
|
48
|
43
|
34
|
434
|
290
|
724
|
190
|
155
|
28
|
||||
|
CDLF4-80
|
1.5
|
H(m) |
72
|
70
|
64
|
55
|
50
|
38
|
461
|
290 |
751
|
190 |
155 |
29
|
||||
|
CDLF4-90
|
2.2
|
H(m) |
81
|
78
|
72
|
63
|
56
|
44
|
488
|
290 |
778
|
190 |
155 |
31
|
||||
|
CDLF4-100
|
2.2
|
H(m) |
90
|
87
|
81
|
71
|
62
|
50
|
515
|
290 |
805
|
190 |
155 |
32
|
||||
|
CDLF4-110
|
2.2
|
H(m) |
99
|
95
|
88
|
78
|
68
|
53
|
542
|
290 |
832
|
190 |
155 |
34
|
||||
|
CDLF4-120
|
2.2
|
H(m) |
108
|
104
|
95
|
85
|
75
|
57
|
569
|
290 |
859
|
190 |
155 |
35
|
||||
|
CDLF4-130
|
3.0
|
H(m) |
117
|
113
|
103
|
93
|
82
|
63
|
606
|
315
|
921
|
197
|
165
|
36
|
||||
|
CDLF4-140
|
3.0
|
H(m) |
126
|
122
|
112
|
101
|
89
|
69
|
633
|
315 |
948
|
197 |
165 |
38
|
||||
|
CDLF4-150
|
3.0
|
H(m) |
135
|
131
|
120
|
108
|
95
|
73
|
660
|
315 |
975
|
197 |
165 |
39
|
||||
|
CDLF4-160
|
3.0
|
H(m) |
144
|
140
|
129
|
115
|
101
|
78
|
687
|
315 |
1002
|
197 |
165 |
40
|
||||
|
CDLF4-170
|
4.0
|
H(m) |
153
|
149
|
137
|
122
|
108
|
83
|
714
|
335
|
1049
|
230
|
188
|
42
|
||||
|
CDLF4-180
|
4.0
|
H(m) |
162
|
158
|
145
|
129
|
115
|
89
|
741
|
335 |
1076
|
230 |
188 |
43
|
||||
|
CDLF4-190
|
4.0
|
H(m) |
171
|
168
|
153
|
137
|
122
|
95
|
768
|
335 |
1103
|
230 |
188 |
46
|
||||
|
CDLF4-200
|
4.0
|
H(m) |
180
|
176
|
161
|
144
|
127
|
99
|
795
|
335 |
1130
|
230 |
188 |
47
|
||||
|
CDLF4-210
|
4.0
|
H(m) |
200
|
184
|
169
|
152
|
132
|
103
|
822
|
335 |
1157
|
230 |
188 |
49
|
||||
|
CDLF4-220
|
4.0
|
H(m) |
210
|
192
|
178
|
160
|
138
|
108
|
849
|
335 |
1184
|
230 |
188 |
50
|
||||
性能參數及尺寸(40CDLF8-*)
|
|||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
|||||||||||||||
|
m3/h
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
||||||||||||
|
KW
|
L/S
|
1.67
|
1.94
|
2.22
|
2.5
|
2.78
|
3.06
|
3.33
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
(kg)
|
|||||
|
CDLF8-20/1
|
0.75
|
H(m)
|
9.5
|
9.3
|
9
|
8.5
|
8
|
7
|
6
|
364
|
245
|
609
|
170
|
142
|
35
|
||||
|
CDLF8-20
|
0.75
|
H(m) |
20
|
19
|
18
|
17
|
16
|
14
|
13
|
364
|
245 |
609
|
170 |
142 |
35
|
||||
|
CDLF8-30
|
1.1
|
H(m) |
30
|
29
|
28
|
26
|
24
|
21
|
19
|
394
|
245 |
639
|
170 |
142 |
35
|
||||
|
CDLF8-40
|
1.5
|
H(m) |
40
|
38
|
36
|
34
|
32
|
28
|
26
|
434
|
290
|
724
|
190
|
155
|
45
|
||||
|
CDLF8-50
|
2.2
|
H(m) |
50
|
48
|
45
|
42
|
40
|
36
|
32
|
464
|
290 |
754
|
190 |
155 |
50
|
||||
|
CDLF8-60
|
2.2
|
H(m) |
60
|
57
|
54
|
51
|
48
|
43
|
39
|
494
|
290 |
784
|
190 |
155 |
50
|
||||
|
CDLF8-70
|
3.0
|
H(m) |
70
|
68
|
64
|
61
|
57
|
50
|
45
|
534
|
315
|
849
|
197
|
165
|
55
|
||||
|
CDLF8-80
|
3.0
|
H(m) |
80
|
77
|
73
|
69
|
65
|
58
|
52
|
564
|
315 |
879
|
197 |
165 |
55
|
||||
|
CDLF8-90
|
4.0
|
H(m) |
90
|
87
|
83
|
79
|
72
|
66
|
60
|
594
|
335
|
929
|
230
|
188
|
55
|
||||
|
CDLF8-100
|
4.0
|
H(m) |
100
|
97
|
92
|
87
|
81
|
73
|
65
|
624
|
335 |
959
|
230 |
188 |
55
|
||||
|
CDLF8-110
|
4.0
|
H(m) |
110
|
106
|
101
|
96
|
88
|
80
|
72
|
654
|
335 |
989
|
230 |
188 |
60
|
||||
|
CDLF8-120
|
4.0
|
H(m) |
120
|
116
|
111
|
104
|
92
|
87
|
78
|
684
|
335 |
1019
|
230 |
188 |
60
|
||||
|
CDLF8-130
|
5.5
|
H(m) |
130
|
126
|
119
|
114
|
105
|
95
|
84
|
734
|
430
|
1164
|
260
|
208
|
85
|
||||
|
CDLF8-140
|
5.5
|
H(m) |
141
|
136
|
130
|
122
|
113
|
102
|
92
|
764
|
430 |
1194
|
260 |
208 |
85
|
||||
|
CDLF8-150
|
5.5
|
H(m) |
150
|
145
|
138
|
131
|
121
|
111
|
100
|
794
|
430 |
1224
|
260 |
208 |
85
|
||||
|
CDLF8-160
|
5.5
|
H(m) |
161
|
156
|
148
|
139
|
130
|
118
|
106
|
824
|
430 |
1254
|
260 |
208 |
85
|
||||
|
CDLF8-170
|
7.5
|
H(m) |
170
|
165
|
156
|
149
|
138
|
126
|
113
|
854
|
430 |
1284
|
260 |
208 |
90
|
||||
|
CDLF8-180
|
7.5
|
H(m) |
182
|
175
|
167
|
157
|
146
|
134
|
120
|
884
|
430 |
1314
|
260 |
208 |
90
|
||||
|
CDLF8-190
|
7.5
|
H(m) |
190
|
184
|
175
|
166
|
154
|
142
|
128
|
914
|
430 |
1344
|
260 |
208 |
90
|
||||
|
CDLF8-200
|
7.5
|
H(m) |
202
|
195
|
186
|
175
|
163
|
150
|
135
|
944
|
430 |
1374
|
260 |
208 |
90
|
||||
性能參數及尺寸(50CDLF16-*)
|
|||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
|||||||||||||||
|
m3/h
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
||||||||||||
|
KW
|
L/S
|
2.22
|
2.78
|
3.33
|
3.89
|
4.44
|
5
|
5.56
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
(kg)
|
|||||
|
CDLF16-20
|
2.2
|
H(m)
|
28
|
27
|
26
|
25
|
23
|
21
|
18
|
414
|
290
|
704
|
190
|
155
|
51
|
||||
|
CDLF16-30
|
3.0
|
H(m) |
42
|
41
|
39
|
37
|
35
|
32
|
27
|
469
|
315
|
784
|
197
|
165
|
54
|
||||
|
CDLF16-40
|
4.0
|
H(m) |
56
|
54
|
52
|
50
|
47
|
44
|
37
|
514
|
335
|
849
|
230
|
188
|
60
|
||||
|
CDLF16-50
|
5.5
|
H(m) |
69
|
68
|
65
|
62
|
59
|
54
|
47
|
579
|
430
|
1009
|
260
|
208
|
75
|
||||
|
CDLF16-60
|
5.5
|
H(m) |
83
|
81
|
78
|
75
|
70
|
64
|
56
|
624
|
430 |
1054
|
260 |
208 |
80
|
||||
|
CDLF16-70
|
7.5
|
H(m) |
97
|
95
|
92
|
87
|
82
|
75
|
68
|
669
|
430 |
1099
|
260 |
208 |
85
|
||||
|
CDLF16-80
|
7.5
|
H(m) |
111
|
108
|
105
|
100
|
94
|
86
|
77
|
714
|
430 |
1144
|
260 |
208 |
88
|
||||
|
CDLF16-90
|
11
|
H(m) |
125
|
122
|
118
|
112
|
106
|
97
|
88
|
789
|
490
|
1279
|
330
|
255
|
126
|
||||
|
CDLF16-100
|
11
|
H(m) |
139
|
136
|
131
|
125
|
118
|
108
|
99
|
834
|
490 |
1324
|
330 |
255 |
126
|
||||
|
CDLF16-110
|
11
|
H(m) |
153
|
149
|
144
|
137
|
129
|
118
|
108
|
879
|
490 |
1369
|
330 |
255 |
131
|
||||
|
CDLF16-120
|
11
|
H(m) |
167
|
163
|
157
|
150
|
141
|
129
|
117
|
924
|
490 |
1414
|
330 |
255 |
131
|
||||
|
CDLF16-130
|
15
|
H(m) |
180
|
176
|
170
|
162
|
153
|
141
|
128
|
969
|
490 |
1459
|
330 |
255 |
177
|
||||
|
CDLF16-140
|
15
|
H(m) |
194
|
190
|
184
|
175
|
165
|
151
|
139
|
1014
|
490 |
1504
|
330 |
255 |
177
|
||||
|
CDLF16-150
|
15
|
H(m) |
208
|
203
|
197
|
187
|
177
|
162
|
148
|
1059
|
490 |
1549
|
330 |
255 |
182
|
||||
|
CDLF16-160
|
15
|
H(m) |
222
|
217
|
210
|
200
|
189
|
173
|
158
|
1104
|
490 |
1594
|
330 |
255 |
182
|
||||
性能參數及尺寸(65CDLF32-*)
|
|||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
|||||||||||||||
|
m3/h
|
15
|
16
|
20
|
24
|
28
|
32
|
36
|
||||||||||||
|
KW
|
L/S
|
4.17
|
4.44
|
5.56
|
6.67
|
7.78
|
8.89
|
10
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
(kg)
|
|||||
|
CDLF32-10/1
|
1.5
|
H(m)
|
16
|
15
|
13
|
12
|
11
|
10
|
7
|
505
|
290
|
795
|
190
|
155
|
70
|
||||
|
CDLF32-10
|
2.2
|
H(m) |
18
|
17
|
16
|
15
|
14
|
13
|
10
|
505
|
290 |
795
|
190 |
155 |
71
|
||||
|
CDLF32-20/2
|
3.0
|
H(m) |
32
|
31
|
30
|
27
|
25
|
22
|
14
|
575
|
315
|
890
|
197
|
165
|
80
|
||||
|
CDLF32-20
|
4.0
|
H(m) |
37
|
36
|
35
|
32
|
31
|
28
|
22
|
575
|
335
|
910
|
230
|
180
|
82
|
||||
|
CDLF32-30/2
|
5.5
|
H(m) |
50
|
49
|
47
|
44
|
40
|
36
|
27
|
645
|
430
|
1075
|
260
|
208
|
93
|
||||
|
CDLF32-30
|
5.5
|
H(m) |
56
|
55
|
53
|
50
|
47
|
42
|
33
|
645
|
430 |
1075
|
260 |
208 |
94
|
||||
|
CDLF32-40/2
|
7.5
|
H(m) |
68
|
67
|
65
|
62
|
56
|
50
|
37
|
715
|
430 |
1145
|
260 |
208 |
102
|
||||
|
CDLF32-40
|
7.5
|
H(m) |
75
|
74
|
71
|
67
|
62
|
56
|
45
|
715
|
430 |
1145
|
260 |
208 |
103
|
||||
|
CDLF32-50/2
|
11
|
H(m) |
88
|
87
|
85
|
80
|
73
|
66
|
51
|
895
|
490
|
1385
|
330
|
255
|
172
|
||||
|
CDLF32-50
|
11
|
H(m) |
94
|
93
|
90
|
86
|
79
|
72
|
57
|
895
|
490 |
1385
|
330 |
255 |
173
|
||||
|
CDLF32-60/2
|
11
|
H(m) |
107
|
106
|
102
|
96
|
89
|
79
|
62
|
965
|
490 |
1455
|
330 |
255 |
176
|
||||
|
CDLF32-60
|
11
|
H(m) |
114
|
112
|
107
|
102
|
95
|
86
|
68
|
965
|
490 |
1455
|
330 |
255 |
177
|
||||
|
CDLF32-70/2
|
15
|
H(m) |
127
|
125
|
121
|
114
|
106
|
94
|
75
|
1035
|
490 |
1525
|
330 |
255 |
188
|
||||
|
CDLF32-70
|
15
|
H(m) |
133
|
131
|
126
|
119
|
112
|
102
|
82
|
1035
|
490 |
1525
|
330 |
255 |
189
|
||||
|
CDLF32-80/2
|
15
|
H(m) |
145
|
143
|
137
|
131
|
121
|
109
|
85
|
1105
|
490 |
1595
|
330 |
255 |
192
|
||||
|
CDLF32-80
|
15
|
H(m) |
151
|
149
|
144
|
136
|
128
|
115
|
92
|
1105
|
490 |
1595
|
330 |
255 |
193
|
||||
|
CDLF32-90/2
|
18.5
|
H(m) |
165
|
163
|
157
|
149
|
138
|
125
|
98
|
1175
|
550
|
1725
|
330
|
255
|
218
|
||||
|
CDLF32-90
|
18.5
|
H(m) |
172
|
170
|
163
|
155
|
146
|
132
|
106
|
1175
|
550 |
1725
|
330 |
255 |
219
|
||||
|
CDLF32-100/2
|
18.5
|
H(m) |
184
|
182
|
175
|
165
|
154
|
138
|
110
|
1245
|
550 |
1795
|
330 |
255 |
222
|
||||
|
CDLF32-100
|
18.5
|
H(m) |
190
|
188
|
181
|
172
|
159
|
145
|
117
|
1245
|
550 |
1795
|
330 |
255 |
223
|
||||
|
CDLF32-110/2
|
22
|
H(m) |
204
|
202
|
194
|
184
|
171
|
154
|
123
|
1315
|
590
|
1905
|
360
|
285
|
259
|
||||
|
CDLF32-110
|
22
|
H(m) |
210
|
208
|
200
|
190
|
177
|
161
|
130
|
1315
|
590 |
1905
|
360 |
285 |
260
|
||||
|
CDLF32-120/2
|
22
|
H(m) |
222
|
220
|
212
|
201
|
187
|
168
|
135
|
1385
|
590 |
1975
|
360 |
285 |
263
|
||||
|
CDLF32-120
|
22
|
H(m) |
226
|
224
|
217
|
207
|
193
|
176
|
142
|
1385
|
590 |
1975
|
360 |
285 |
264
|
||||
|
CDLF32-130/2
|
30
|
H(m) |
244
|
242
|
233
|
222
|
207
|
187
|
151
|
1455
|
660
|
2115
|
400
|
310
|
327
|
||||
|
CDLF32-130
|
30
|
H(m) |
250
|
248
|
238
|
227
|
213
|
193
|
158
|
1455
|
660 |
2115
|
400 |
310 |
328
|
||||
|
CDLF32-140/2
|
30
|
H(m) |
264
|
260
|
252
|
237
|
222
|
202
|
163
|
1525
|
660 |
2185
|
400 |
310 |
331
|
||||
|
CDLF32-140
|
30
|
H(m) |
268
|
265
|
256
|
244
|
228
|
208
|
170
|
1525
|
660 |
2185
|
400 |
310 |
332
|
||||
性能參數及尺寸(80CDLF45-*)
|
||||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
||||||||||||||||
|
KW
|
m3/h
|
25
|
30
|
35
|
40
|
45
|
50
|
55
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
D3
|
(kg)
|
|||||
|
CDLF45-1-1
|
3
|
H(m)
|
20
|
19
|
18
|
17
|
16
|
13
|
11
|
558
|
330
|
888
|
190
|
140
|
160
|
100
|
||||
|
CDLF45-1
|
4
|
H(m) |
24
|
23
|
22
|
21
|
19
|
17
|
15
|
558 |
330 |
888 |
220
|
150
|
160 |
110
|
||||
|
CDLF45-2-2
|
5.5
|
H(m) |
40
|
38
|
37
|
34
|
31
|
27
|
23
|
638
|
420
|
1058
|
260
|
210
|
300
|
120
|
||||
|
CDLF45-2
|
7.5
|
H(m) |
48
|
47
|
45
|
42
|
38
|
36
|
32
|
638 |
420 |
1058 |
260 |
210 |
300 |
125
|
||||
|
CDLF45-3-2
|
11
|
H(m) |
66
|
65
|
60
|
56
|
52
|
47
|
39
|
828
|
500
|
1328
|
330
|
260
|
350
|
165
|
||||
|
CDLF45-3
|
11
|
H(m) |
72
|
72
|
68
|
65
|
59
|
54
|
48
|
828 |
500 |
1328 |
330 |
260 |
350 |
165
|
||||
|
CDLF45-4-2
|
15
|
H(m) |
91
|
89
|
84
|
78
|
72
|
65
|
56
|
908
|
500 |
1408
|
330 |
260 |
350 |
205
|
||||
|
CDLF45-4
|
15
|
H(m) |
98
|
96
|
92
|
87
|
80
|
73
|
65
|
908 |
500 |
1408 |
330 |
260 |
350 |
205
|
||||
|
CDLF45-5-2
|
18.5
|
H(m) |
116
|
112
|
108
|
102
|
93
|
84
|
74
|
988
|
550
|
1538
|
380
|
310
|
350 |
215
|
||||
|
CDLF45-5
|
18.5
|
H(m) |
124
|
120
|
115
|
109
|
101
|
92
|
80
|
988 |
550 |
1538 |
380 |
310 |
350 |
215
|
||||
|
CDLF45-6-2
|
22
|
H(m) |
142
|
137
|
132
|
123
|
114
|
103
|
89
|
1068
|
600
|
1668
|
380 |
310 |
350 |
275
|
||||
|
CDLF45-6
|
22
|
H(m) |
150
|
145
|
138
|
131
|
122
|
111
|
97
|
1068 |
600 |
1668 |
380 |
310 |
350 |
275
|
||||
|
CDLF45-7-2
|
30
|
H(m) |
168
|
164
|
156
|
147
|
136
|
124
|
109
|
1148
|
680
|
1808
|
420
|
350
|
400
|
355
|
||||
|
CDLF45-7
|
30
|
H(m) |
175
|
171
|
164
|
155
|
144
|
132
|
116
|
1148 |
680 |
1808 |
420 |
350 |
400 |
355
|
||||
|
CDLF45-8-2
|
30
|
H(m) |
192
|
187
|
178
|
169
|
156
|
142
|
125
|
1228
|
680 |
1888
|
420 |
350 |
400 |
360
|
||||
|
CDLF45-8
|
30
|
H(m) |
200
|
194
|
187
|
176
|
164
|
150
|
133
|
1228 |
680 |
1888 |
420 |
350 |
400 |
360
|
||||
|
CDLF45-9-2
|
30
|
H(m) |
217
|
211
|
202
|
190
|
176
|
158
|
140
|
1308
|
680 |
1968
|
420 |
350 |
400 |
365
|
||||
|
CDLF45-9
|
37
|
H(m) |
226
|
219
|
211
|
198
|
187
|
170
|
150
|
1308 |
680 |
1968 |
420 |
350 |
400 |
365
|
||||
|
CDLF45-10-2
|
37
|
H(m) |
243
|
235
|
226
|
212
|
196
|
178
|
158
|
1388
|
680 |
2048
|
420 |
350 |
400 |
390
|
||||
|
CDLF45-10
|
37
|
H(m) |
251
|
244
|
233
|
220
|
205
|
188
|
165
|
1388 |
680 |
2048 |
420 |
350 |
400 |
390
|
||||
|
CDLF45-11-2
|
45
|
H(m) |
273
|
265
|
253
|
238
|
221
|
201
|
178
|
1468
|
710
|
2178
|
470
|
375
|
450
|
455
|
||||
|
CDLF45-11
|
45
|
H(m) |
281
|
272
|
261
|
246
|
229
|
210
|
187
|
1468 |
710 |
2178 |
470 |
375 |
450 |
455
|
||||
|
CDLF45-12-2
|
45
|
H(m) |
298
|
289
|
276
|
260
|
242
|
220
|
195
|
1556
|
710 |
2266
|
470 |
375 |
450 |
460
|
||||
|
CDLF45-12
|
45
|
H(m) |
306
|
296
|
285
|
269
|
250
|
229
|
204
|
1556 |
710 |
2266 |
470 |
375 |
450 |
460
|
||||
|
CDLF45-13
|
45
|
H(m) |
323
|
313
|
300
|
283
|
262
|
239
|
212
|
1636
|
710 |
2346
|
470 |
375 |
450 |
465
|
||||
性能參數及尺寸(100CDLF64-*)
|
|||||||||||||||||||
|
泵型号
|
電機
|
流量Q（n≈2900）
|
尺寸
|
重量
|
|||||||||||||||
|
KW
|
m3/h
|
30
|
40
|
50
|
60
|
70
|
80
|
B1
|
B2
|
B1+B2
|
D1
|
D2
|
D3
|
(kg)
|
|||||
|
CDLF64-1-1
|
4
|
H(m)
|
20
|
18
|
16
|
14
|
12
|
9
|
561
|
330
|
891
|
220
|
150
|
160
|
105
|
||||
|
CDLF64-1
|
5.5
|
H(m) |
28
|
26
|
24
|
22
|
20
|
17
|
561 |
420
|
981
|
260
|
210
|
300
|
120
|
||||
|
CDLF64-2-2
|
7.5
|
H(m) |
40
|
38
|
36
|
31
|
26
|
19
|
644
|
420 |
1064
|
260 |
210 |
300 |
130
|
||||
|
CDLF64-2-1
|
11
|
H(m) |
48
|
46
|
43
|
39
|
34
|
28
|
754
|
500
|
1254
|
330
|
260
|
350
|
165
|
||||
|
CDLF64-2
|
11
|
H(m) |
55
|
52
|
49
|
46
|
42
|
36
|
754 |
500 |
1254 |
330 |
260 |
350 |
165
|
||||
|
CDLF64-3-2
|
15
|
H(m) |
69
|
66
|
61
|
55
|
48
|
40
|
836
|
500 |
1336
|
330 |
260 |
350 |
205
|
||||
|
CDLF64-3-1
|
15
|
H(m) |
76
|
72
|
68
|
63
|
56
|
48
|
836 |
500 |
1336 |
330 |
260 |
350 |
205
|
||||
|
CDLF64-3
|
18.5
|
H(m) |
85
|
80
|
76
|
71
|
64
|
55
|
836 |
550
|
1386
|
380
|
310
|
350 |
215
|
||||
|
CDLF64-4-2
|
18.5
|
H(m) |
96
|
93
|
88
|
79
|
70
|
59
|
919
|
550 |
1469
|
380 |
310 |
350 |
215
|
||||
|
CDLF64-4-1
|
22
|
H(m) |
104
|
100
|
95
|
88
|
78
|
68
|
919 |
600
|
1519
|
380 |
310 |
350 |
270
|
||||
|
CDLF64-4
|
22
|
H(m) |
111
|
107
|
102
|
94
|
86
|
75
|
919 |
600 |
1519 |
380 |
310 |
350 |
270
|
||||
|
CDLF64-5-2
|
30
|
H(m) |
126
|
122
|
114
|
106
|
94
|
80
|
1001
|
660
|
1661
|
420
|
350
|
400
|
350
|
||||
|
CDLF64-5-1
|
30
|
H(m) |
134
|
129
|
122
|
113
|
102
|
88
|
1001 |
660 |
1661 |
420 |
350 |
400 |
350
|
||||
|
CDLF64-5
|
30
|
H(m) |
141
|
136
|
129
|
120
|
110
|
96
|
1001 |
660 |
1661 |
420 |
350 |
400 |
350
|
||||
|
CDLF64-6-2
|
30
|
H(m) |
154
|
149
|
140
|
129
|
115
|
100
|
1084
|
660 |
1744
|
420 |
350 |
400 |
355
|
||||
|
CDLF64-6-1
|
37
|
H(m) |
162
|
156
|
148
|
137
|
125
|
108
|
1084 |
660 |
1744 |
420 |
350 |
400 |
375
|
||||
|
CDLF64-6
|
37
|
H(m) |
170
|
164
|
155
|
145
|
132
|
116
|
1084 |
660 |
1744 |
420 |
350 |
400 |
375
|
||||
|
CDLF64-7-2
|
37
|
H(m) |
182
|
177
|
166
|
153
|
138
|
120
|
1166
|
660 |
1826
|
420 |
350 |
400 |
380
|
||||
|
CDLF64-7-1
|
37
|
H(m) |
190
|
184
|
173
|
160
|
146
|
127
|
1166 |
660 |
1826 |
420 |
350 |
400 |
380
|
||||
|
CDLF64-7
|
45
|
H(m) |
202
|
195
|
185
|
172
|
155
|
137
|
1166 |
710
|
1876
|
470
|
375
|
450
|
445
|
||||
|
CDLF64-8-2
|
45
|
H(m) |
214
|
207
|
196
|
181
|
162
|
140
|
1248
|
710 |
1958
|
470 |
375 |
450 |
450
|
||||
|
CDLF64-8-1
|
45
|
H(m) |
223
|
215
|
203
|
189
|
170
|
149
|
1248 |
710 |
1958 |
470 |
375 |
450 |
450
|
||||
易損件
|
|
|||||||||||||||||||||||||||||||||||||
更換機封圖解
QQ交談
